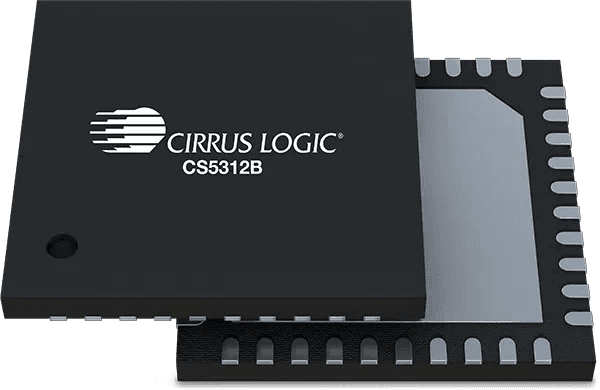

CS5312B

High performance 2-channel analog-to-digital converter

CS5312B Overview

The CS5312B is part of a new series of pro audio converters aimed at giving cost-effective transparent audio conversion. All within one device that is easy to use and provides system level cost savings. The CS5312B is a high performance, 32-bit resolution, two-channel ADC. The CS5312B supports differential analog input and 32-bit digital output via the audio serial port (ASP) at sample rates up to 384 kHz. The CS5312B uses a 5th-order, multibit sigma-delta modulator followed by digital filtering and decimation. This provides a dynamic range of over 110 dB and THD+N below -100 dB all within a 25 mW/ch power budget. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making it both flexible and easy to integrate. This, together with Cirrus’s analog gain feature, makes the CS5312B ideal for digital mixing consoles, DAW interfaces, effects processors, musical instruments and audio/video receivers. Learn more about Cirrus Logic's high performance audio solutions.

Product Features

  • High performance two-channel ADC

    • Differential analog architecture

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • Crystal oscillator interface

  • Sample timing alignment across multiple devices

  • Virtual passive attenuation device (PAD)

  • Clip detection

  • Signal activity detection

  • Audio serial port (ASP) sample rates up to 384 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

  • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Package40-pin QFN
Analog Input TypeDifferential
Channels In2
ADC Dynamic Range (dB)110
ADC THD+N (dB)-100
Sample Rate (kHz)384
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3

Design Resources

Browse Resource Library

Evaluation Boards

  • Dunglass System (CDB-PROAUDIO)

    Dunglass System (CDB-PROAUDIO)

    The Dunglass system (CDB-PROAUDIO) is the hardware platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides audio inputs/outputs, 8-channel USB streaming via the Jura module, S/PDIF I/O, and external audio serial port connections for a range of use cases.

    User Guide
  • Dunglass ADC Card (CDB-DC5312S/B-ADC)

    Dunglass ADC Card (CDB-DC5312S/B-ADC)

    The DC5312S/B-ADC is a daughter card for the Cirrus Logic Dunglass (CDB-PROAUDIO) system, providing the platform to evaluate the CS5312S/B high-performance two-channel audio ADC, with a differential input buffer circuit and hardware/software control modes.

    Order SampleUser Guide
  • Dunglass ADC Daughter Card (CDB-DC5312BSE-ADC)

    Dunglass ADC Daughter Card (CDB-DC5312BSE-ADC)

    The DC5312BSE-ADC is a daughter card for the Cirrus Logic Dunglass (CDB-PROAUDIO) system, used to evaluate the CS5312BSE high-performance two-channel audio ADC. It connects via a JURA module and supports hardware or software control modes for device evaluation.

    User Guide
