A/D Converters

CS5304S

High-performance 4-channel analog-to-digital converter
View Datasheet (opens in new tab)

CS5304S Overview

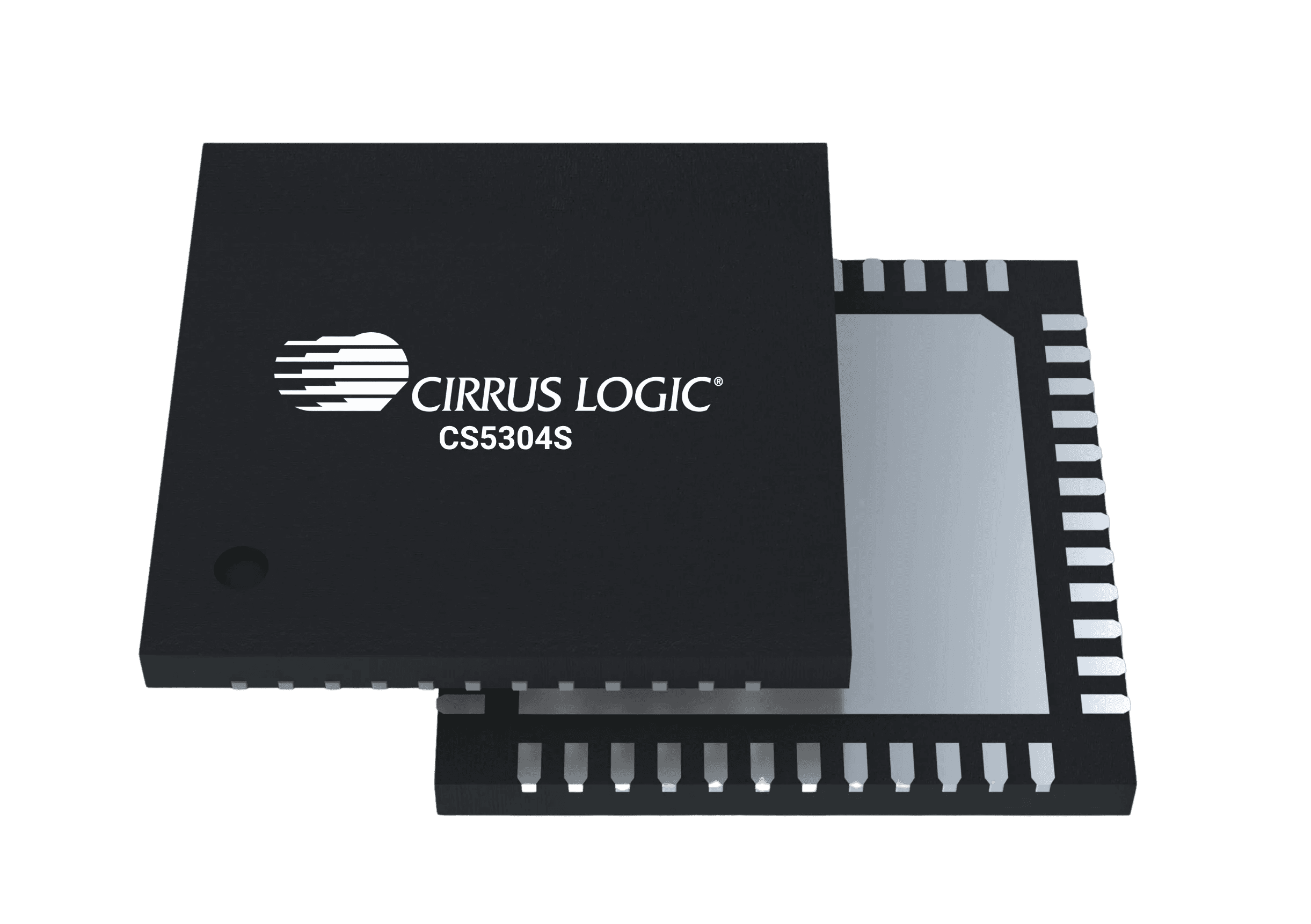

The CS5304S is a 4-channel audio ADC providing 32-bit resolution at a rate of up to 768 kHz. The CS5304S’s integrated hybrid gain control feature reduces the external pre-amp control circuitry, offering a reduced BOM and simplified design when compared with alternative solutions. The CS5304S is ideal for cost sensitive applications that require a combination of both high performance and low power, offering >115 dB dynamic range and THD+N below –110 dB, all within a 25 mW/ch power budget.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance four-channel ADC

    • Differential analog architecture

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • PLL supports range of external system-clock references

  • Synchronous operation across multiple devices

  • Hybrid gain control

  • Audio serial port (ASP) sample rates up to 768 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Analog Input TypeDifferential
Channels In4
ADC Dynamic Range (dB)118
ADC THD+N (dB)-105
Sample Rate (kHz)768
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Operational Power Consumption (mW)108
Target MarketPro Audio
Package48 QFN
