D/A Converters

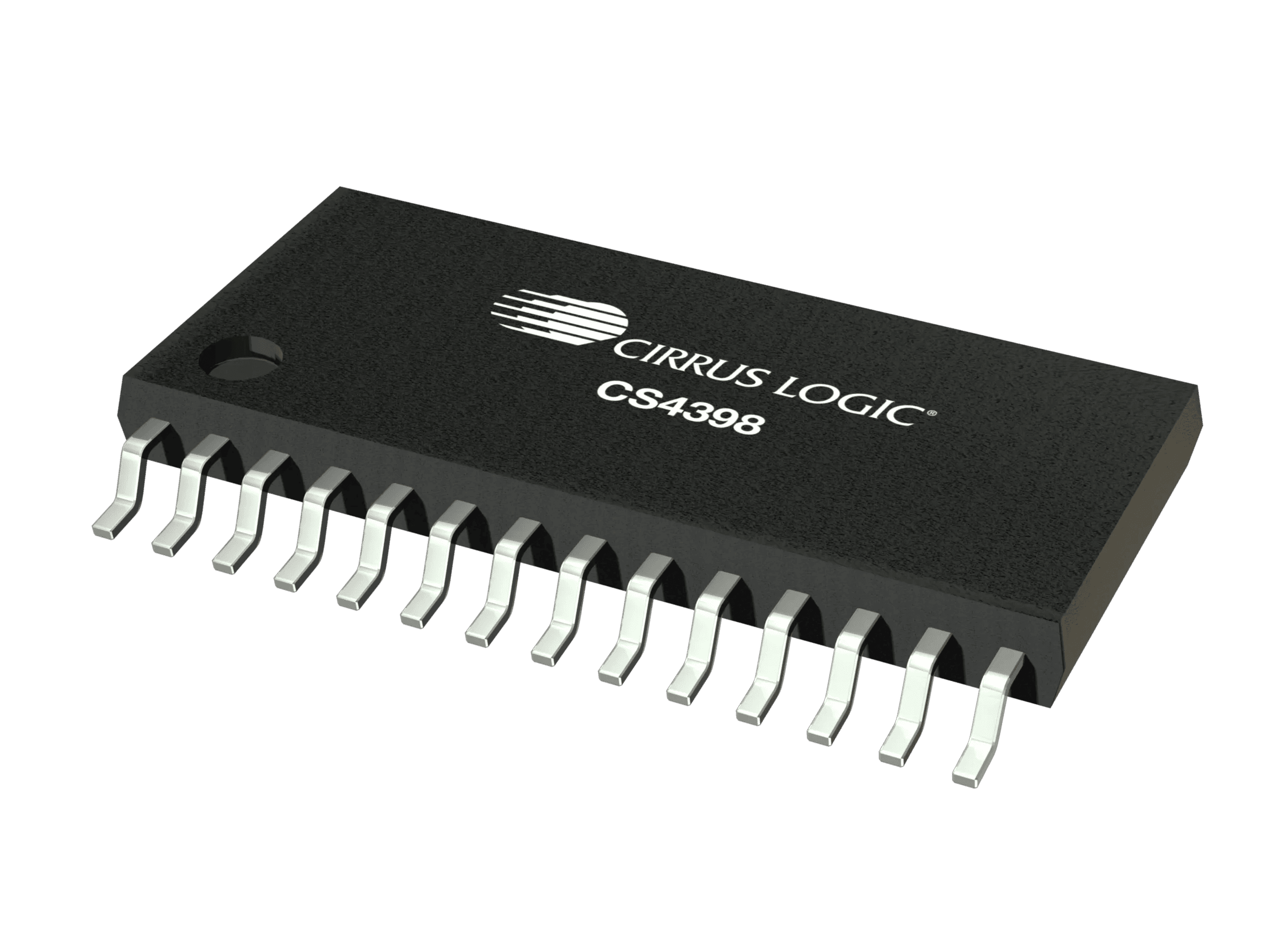

CS4398

120 dB, 24-Bit, 192 kHz Stereo D/A Converter with DSD Support

CS4398 Overview

The CS4398 is a low power, 120 dB stereo digital/analog converter (DAC) featuring digital de-emphasis, half dB step-size volume control, ATAPI channel mixing, and selectable fast and slow roll off digital interpolation filters. This stage is followed by an over sampled multi-bit Delta Sigma modulator, which includes mismatch shaping technology that eliminates distortion due to capacitor mismatch, and a multi-element switched capacitor stage and low-pass filter with differential analog outputs. A Direct Stream Digital® (DSD) processor allows for volume control and 50 kHz on-chip filtering without an intermediate decimation stage, plus an optional path for direct DSD conversion by directly using the multi-element switched capacitor array. The IC accepts DSD audio and 32 kHz to 200 kHz data sample rates, has selectable digital filters and delivers excellent sound quality.

Product Features

  • Low-latency digital filter

  • Direct Stream Digital mode (SACD)

  • Low-clock-jitter sensitivity

  • Differential analog outputs

  • Control output for external muting

Parametric Specifications

Package28 TSSOP
Analog Output TypeDifferential
Channels Out2
DAC Dynamic Range (dB)120
DAC THD+N (dB)-107
Sample Rate (kHz)30-216
Resolution (bits)24
Analog Power Supply (V)5
Digital Power Supply (V)3.3-5.0
Logic Power Supply (V)1.8-5.0
Output Level (Vrms)2.3

Design Resources

Browse Resource Library

Evaluation Boards

  • CS4398 Stereo DAC Evaluation Board (CDB4398)

    CS4398 Stereo DAC Evaluation Board (CDB4398)

    The CDB4398 evaluation board is an excellent means for quickly evaluating the CS4398 24-bit, high-performance stereo D/A converter, using the CS8414 digital audio receiver for system timing and providing RCA and balanced XLR analog line outputs for a complete DAC evaluation system.
