D/A Converters

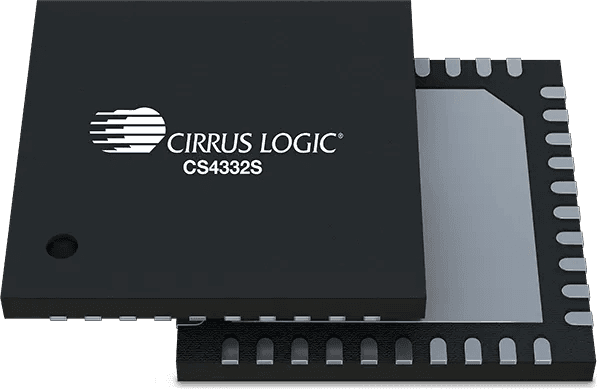

CS4332S

High performance 2-channel digital-to-analog converter

CS4332S Overview

The CS4332S is part of a new series of pro audio converters aimed at giving cost-effective transparent audio conversion. All within one device that is easy to use and provides system level cost savings. The CS4332S is a high performance, 32-bit resolution, two-channel DAC. The CS4332S supports differential analog outputs and 32-bit digital input via the audio serial port (ASP) at sample rates up to 384 kHz. The voltage-output CS4332S incorporates a proprietary analog FIR architecture to reduce out-of-band noise and minimize the external component requirements. This provides a dynamic range of over 115 dB and THD+N below -105 dB. The device can be powered from a single rail and controlled by either hardware pins, I2C or SPI, making it both flexible and easy to integrate. This, together with Cirrus’s advanced digital filters and new DAC hybrid gain control, makes the CS4332S ideal for digital mixing consoles, DAW interfaces, effects processors, musical instruments and audio/video receivers. Learn more about Cirrus Logic's high performance audio solutions.

Product Features

  • High performance two-channel DAC

    • Differential analog architecture

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • Crystal oscillator interface

  • Sample timing alignment across multiple devices

  • Hybrid gain control (HGC)

    • Synchronized control of external analog, and internal digital gain

  • Audio serial port (ASP) sample rates up to 384 kHz

    • I2S, left-justified, and TDM data formats

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Package40-pin QFN
Analog Output TypeDifferential
Channels Out2
DAC Dynamic Range (dB)115
DAC THD+N (dB)-105
Sample Rate (kHz)384
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3

Design Resources

Browse Resource Library

Evaluation Boards

  • Dunglass System (CDB-PROAUDIO)

    Dunglass System (CDB-PROAUDIO)

    The Dunglass system (CDB-PROAUDIO) is the hardware platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides audio inputs/outputs, 8-channel USB streaming via the Jura module, S/PDIF I/O, and external audio serial port connections for a range of use cases.

    User Guide
  • Dunglass DAC Card (CDB-DC4332S/B-DAC)

    Dunglass DAC Card (CDB-DC4332S/B-DAC)

    The DC4332S/B-DAC is a daughter card for the Cirrus Logic Dunglass (CDB-PROAUDIO) system, providing the platform to evaluate the CS4332S/B high-performance two-channel audio DAC, with selectable output buffering (line, headphone) and hardware/software control modes.

    Order SampleUser Guide
