D/A Converters

CS4304S

High-performance 4-channel digital-to-analog converter
View Datasheet (opens in new tab)

CS4304S Overview

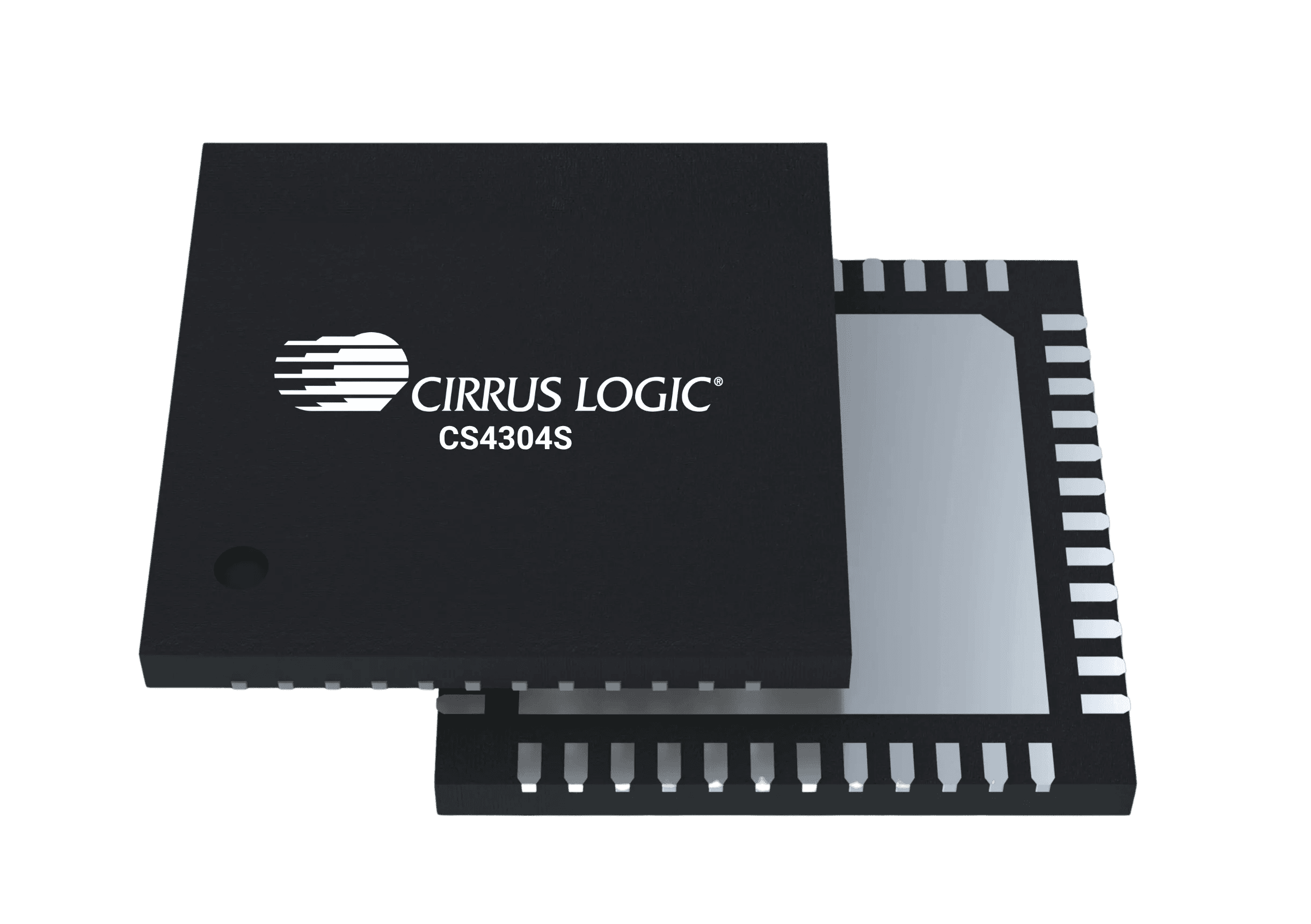

The CS4304S is a 4-channel, 32-bit resolution audio DAC supporting sample rates of up to 768 kHz. The CS4304S’s proprietary filtering adapts to preserve clarity and tonal accuracy across sample rates of 44.1 kHz to 768 kHz, creating a consistent sound that stays balanced independent to the content users are playing. Compared to alternative solutions that rely on specialized low-noise supplies, the CS4304S achieves 118 dB dynamic range without added BOM cost and complexity. Operating at 13 mW/ch, the CS4304S is optimized for high audio performance without compromising power efficiency or cost.

Learn more about Cirrus Logic’s high-performance audio solutions.

CIRRUS®
CIRRUS ROCKS®
ENGINEERED TO ROCK®
INNOVATION THAT ROCKS®

Product Features

  • High-performance 4-channel DAC

    • Differential analog outputs

    • High-resolution 32-bit digital architecture

    • Low-latency digital filters and digital volume control

  • PLL supports range of external system-clock references

  • Synchronous operation across multiple devices

  • Audio serial port (ASP) sample rates up to 768 kHz

    • I2S, left-justified, and TDM data formats

    • DSD up to 512xfs

  • Hardware and software control modes

    • Hardware control with no host processor required

    • I2C control port up to 1 MHz

    • SPI control port up to 24 MHz

  • Single-supply operation at 3.3 V

    • Support for 1.8 V–3.3 V digital input/output

Parametric Specifications

Channels Out4
DAC Dynamic Range (dB)118
DAC THD+N (dB)-110
Sample Rate (kHz)768
Resolution (bits)32
Analog Power Supply (V)3.3
Digital Power Supply (V)3.3
Logic Power Supply (V)1.8-3.3
Output Level (Vrms)2
Target MarketPro Audio
Package48 QFN

Design Resources

CAD DIAGRAM

CS4304S-DN

View and download CAD drawings
Page 1 of 3
Browse all resources

Evaluation Boards

  • CS4304S D/A Converter Evaluation Board (DC4304S-DAC)

    The DC4304S-DAC evaluates the Cirrus Logic CS4304S high-performance multi-channel DAC. A daughter card for the CDB-PROAUDIO system, it supports DSD input, S/PDIF input and configurable DAC output routing.

    Order SampleUser Guide
  • Pro Audio Evaluation System (CDB-PROAUDIO)

    Pro Audio Evaluation System (CDB-PROAUDIO)

    The CDB-PROAUDIO is the motherboard platform for evaluating Cirrus Logic high-performance ADC, DAC and codec devices. It provides analog and S/PDIF I/O, 8-channel USB streaming via the Jura module, and accepts device-specific daughter cards.

    Order SampleUser Guide
  • ETLUM2-SOM USB Control Audio Streaming Board

    ETLUM2-SOM USB Control Audio Streaming Board

    Order Sample
